모 델 | 무선통신 |
---|---|

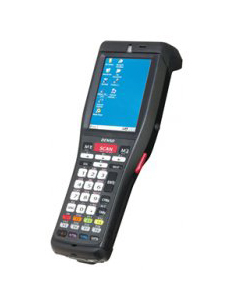

모델 w / 카메라 BHT-1171BWB-CE | IEEE802.11b / g / n 블루투스 |
카메라 없음 / 모델 BHT-1170BWB-CE | IEEE802.11b / g / n 블루투스 |
고급 스캔 플러스 장점
적용 사례
Bar code model | ||||||
---|---|---|---|---|---|---|
Bluetooth® + Wireless LAN | ||||||
Type | BHT-1261BWB-CE | BHT-1261BWB-CE(H) | BHT-1261BWB-CE (WEC7) | BHT-1261BWB-CE (H-WEC7) | ||
OS | Windows® Embedded CE6.0 R3 | Windows Embedded Compact 7 | ||||
CPU | ARM Cortex-A8 800MHz | |||||
Memory | RAM | Mobile DDR 512MB | ||||
Flash ROM | 2.0GB | |||||
Display | Number of Dots(1) | 3.5 inch HVGA (320 x 480 dots) | ||||
Display device | Liquid crystal dot matrix display (color) | |||||
Back light | White LED | |||||
Scanner | Mode | Advanced scan plus (CCD) | ||||
Decode | EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5,Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), MSI, GS1 DataBar (RSS) |
|||||
Minimum resolution | 0.125mm | 0.10mm | 0.125mm | 0.10mm | ||
Reading reference position |
170mm | 140mm | 170mm | 140mm | ||
Scan Confirmation | LED in two colors: Blue/red, speaker, vibration | |||||
Key input section | Number of keys | 31 keys (excluding the power key) + 3 trigger keys | ||||
Network | Wireless I/F | Suitable standard | Comply with IEEE802.11b/g/n(2) | |||
Frequency | IEEE802.11b/g/n (2.4GHz) | |||||
Network range(3) | IEEE802.11b/g/n (indoor: about 150m, outdoor: about 300m) | |||||
Transmission speed(3) |
IEEE802.11b:11/5.5/2/1Mbps, IEEE802.11g:54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps | |||||
Security | WEP40/128, WPA-PSK (TKIP, AES), WPA2-PSK (TKIP, AES), WPA-1 x (TKIP, AES/EAP-TLS, PEAP, LEAP, EAP-FAST), WPA2-1 x (TKIP, AES/EAP-TLS, PEAP, LEAP, EAP-FAST), 802.1 x (EAP-TLS, PEAP, LEAP, EAP-FAST/WEP) |
|||||
Bluetooth | Bluetooth Ver2.0 + EDR based class 2 | Bluetooth Ver2.1 + EDR based class 2 | ||||
Cradle I/F | RS-232C / USB client OTG | |||||
Card slot | MicroSDHC/MicroSD card (~32GB)×1 | |||||
Camera | 5.0M pixel (5.0 megapixel) Camera with automatic focusing function | |||||
Power | Main battery | Lithium-ion battery | ||||
Operating time(4) | With standard battery |
Approx. 23 hrs(5) | ||||
With largecapacity battery |
Approx. 34 hrs(5) | |||||
Additional functionality | Clock, speaker, vibration, battery voltage indicator, key back light, G-sensor, microphone receiver | |||||
Environmental performance | Operating temperature | -20~50°C(6) | ||||
Protection rating | IP54 | |||||
Drop resistance(7) | 0.2m x over 1000 times / 1.5m x 30 times (5 times on each six sides) on a concrete floor | |||||
Mass (including battery, stylus pen, hand-belt)(8) | Approx. 330g |
BHT와 상위 계급 간의 데이터 통신을 수행하는 요람
CU-1233 | CU-1211 | CBBHT-US1800 / C12-4A |
---|---|---|
USB / RS-232C 통신 본체 충전 예비 배터리 충전 |
이더넷 통신 본체 충전 예비 배터리 충전 |
USB 통신 재충전 |
각종 BHT 본체 충전 방식 및 백업 카트리지 충전 방식의 라인업
CH-1254 | CH-1104 |
---|---|
최대 4 대의 BHT-1200을 충전 가능 | 최대 4 개의 BT-110LA 또는 BT-110L 장치를 충전 가능 |
BHT-1200 용 배터리
BT-110LA | BT-120LA-C | BT-110L | BT-120L-C |
---|---|---|---|
리튬 이온 배터리 (표준 배터리 만 해당) | 리튬 이온 배터리 (표준 배터리 + 배터리 커버) | 리튬 이온 배터리 (대용량 배터리 만 해당) | 리튬 이온 배터리 (대용량 배터리 + 배터리 커버) |
SCBHT-1200 | |||
---|---|---|---|
소프트 케이스 | 소프트 케이스 BHT-1261QWBG-CE | 허리 팩 케이스 | 숄더 벨트 |
