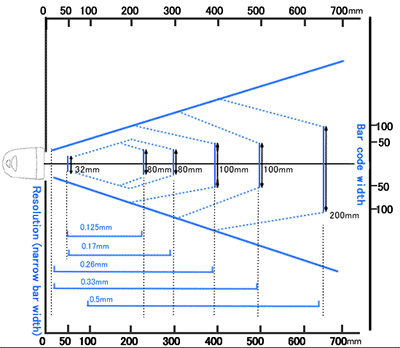

Scan 성능
디자인

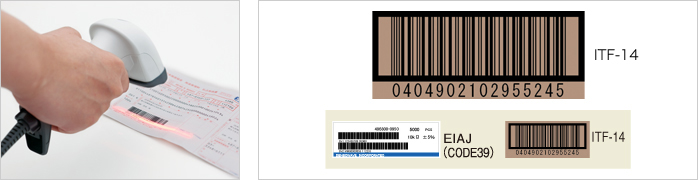

사용 상황

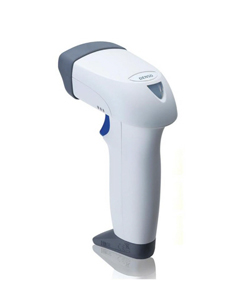

작고 가볍고 조작하기 쉽도록 철저히 헌신 한 바코드 스캐너. 유통 센터, 의료 작업장, 전자 공장 등의 작업에 이상적
Model | AT20B-SM(White) | AT21B-SM(Black) | |||
---|---|---|---|---|---|
RS-232C Model | USB Model | RS-232C Model | USB Model | ||
Type | AT20B-SM(R) | AT20B-SM(U) | AT21B-SM(R) | AT21B-SM(U) | |
Scanner | Scanning system | Advanced Scan Plus(CCD) | |||
Readable codes | EAN-13/8(JAN-13/8), UPC-A/E, UPC/EAN(With add-on codes), Interleaved 2of5(ITF), Standard 2of5(STF), CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), RSS(GS1 DataBar) | ||||
Resolution | 0.125mm | ||||
Marker | LED | ||||
PCS value | not less than 0.3 | ||||
Angle | ±50° | ||||
Scanning confirmation | 3-color LED (Blue,Green and Red), buzzer (with 3-step volume and tone control) | ||||
Communication I/F | I/F | RS-232C | USB(COM, HID)(1) | RS-232C | USB(COM, HID)(1) |
Connector form | Dsub-9Pin | USB TypeA | Dsub-9Pin | USB TypeA | |

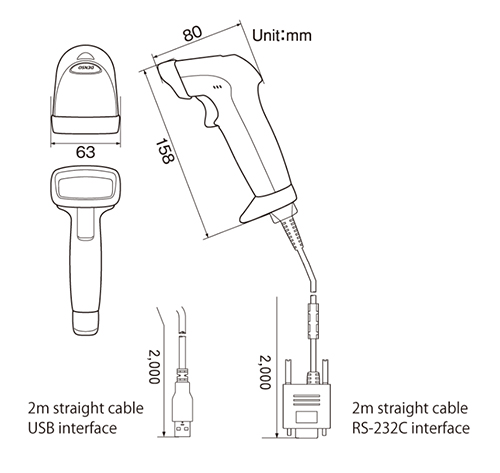

Cable | 2m straight cable | ||||
Power | Power supply | original AC adapter | Supplied from the connection target | original AC adapter | Supplied from the connection target |
Supplied from the connection target | Supplied from the connection target | ||||
Environment Requirements | Drip -proof | IP42 | |||
Drop resistance(2) | 2.0m/0.2m × 100,000 times | ||||
Temperature | -5 to 50°C | ||||
Humidity | 10 to 90% RH (without dews) | ||||
Illumination | 20 to 10000l×(Fluorescent lamp) | ||||
Weight (excl. cable) | Approx. 105g |
S - AT20 (화이트) | S - AT21 (블랙) |
---|---|
AT20B-SM 용 데스크탑 마운트 | AT21B-SM 용 데스크탑 마운트 |
H-AT20 (화이트) | H-AT21 (블랙) | H-AT20-3 |
---|---|---|
먼 거리에서 스캐닝 할 때 AT20B-SM을 잡을 핸즈프리 스탠드 |
먼 거리에서 스캐닝 할 때 AT21B-SM을 잡을 핸즈프리 스탠드 |
BA11-RKU
BA 20-RU
Model | Cable | Type | Interface | Form | Length |
---|---|---|---|---|---|
AT20B-SM(RS-232C) AT21B-SM(RS-232C) |
AT20/21B RS-232C cable / Power from AC adpter | CBA2-RS2000/9 | RS-232C | Straight | 2m |
AT20/21B RS-232C cable/ Power from host unit/ male | CBA2-RS2000/9-1 | ||||
AT20B-SM(USB) AT21B-SM(USB) |
AT20/21B USB cable | CBA2-US2000/4-1 | USB1.1 | Straight | 2m |
DENSO WAVE가 만든 편리한 스캐너의 다양한 매개 변수 설정을위한 소프트웨어
키보드의 입력과 같이 스캐너의 데이터를 변환하는 소프트웨어
