HC36IIR | HC36IITKA | HC36IITUK | |||
---|---|---|---|---|---|
Scanner | Readable codes | EAN-13/-8(JAN-13/-8), UPC-A/-E/-D3※1, UPC/EAN (with add-on codes), Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128, Standard 2 of 5 |
|||

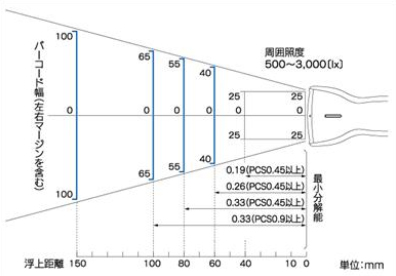

Resolution(In case of CODE39) | 0.15mm(0.125mm※2) | ||||
Max. character (In case of ITF) | 30 character | ||||
Scan angle | 20° ≥ α ≥ 0° | ||||
PCS value | not less than 0.45 | ||||
Scanning sensor | CCD | ||||
Light source | LED Red (λ=660nm) | ||||
Scanning confirmation | Blue LED, buzzer | ||||
Trigger switch | Not supported | support | support | ||
Communication I/F | I/F | RS-232C | Keyboard emulation ※3 | USB ※4 | |
Connector | Dsub-9S | DIN-8P | Mini DIN6P | USB Connector A Type | |
Cable | 2m straight cable | 0.6m curl cable | 2m straight cable | ||
Power | Voltage range | 4.75~5.25V | 4.5~5.5V | 4.4~5.25V | |
Power supply | AC Adepter | Connect | |||
Environment Requirements | Shock Resistance | 1.5m(concrete surface)×6 times | |||
Temperature | 0~40°C (without dews) | ||||
Humidity | 10~90%RH (without dews) | ||||
Illumination | 500~3000Lx (Fluorescent lamp in daytime) | ||||
Weight | Approx 100g | Approx 185g |
